Original Article
Role
of Sub-Conjunctival Bevacizumab in Regression of Corneal Neovascularization
Ibrar Hussain, Akhunzada Muhammad
Aftab
Pak J Ophthalmol 2014, Vol. 30 No. 2
. . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .. . .. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
See
end of article for authors
affiliations …..……………………….. Correspondence
to: Ibrar Hussain H
# P-11, Near Masjid e Firdos University Campus Peshawar- 25125. …..……………………….. |
Purpose: To
evaluate therapeutic effect of subconjunctival bevacizumab on corneal
neovascularization. Material
and Methods: Thirty two eyes, with corneal neovascularization caused by
different ocular surface disorders, were studied. Each eye received 2
injections of 2.5 mg/0.1ml bevacizumab at monthly interval. Morphological
changes in corneal neovessels were evaluated using slit lamp biomicroscopy
and digital corneal photography. Results: Out of
total 32 patients, 21(65.5%) were males and 11(35.5%) were females. Mean age
of all patients was 41.59 ± 17.6 years. Causes of corneal neovascularization
included trauma (28.1%), failed corneal graft (21.9%), chemical burn (12.5%),
healed corneal ulcer (12.5%), trachoma (3.1%) and unknown cause (21.9%). Mean
corneal surface involved by neovessels before injection was 50.56 ± 30.4%
which reduced to 35.81 ± 26.94% after sub-conjunctival injection of
bevacizumab (p = 0.000) and the extent of neovessels reduced from 7.47 ± 3.83
clock hours to 6.56 ± 3.78 clock hours (p = 0.002). No adverse effect of
subconjunctival bevacizumab was noted. Conclusion: Sub-conjunctival
bevacizumab is effective in regressing corneal neovessels partially due to
different causes. But for this purpose repeated injections are needed. |
Cornea
is avascular structure to serve its optical function in a best way. Its
neovascularization is always pathologic and represents an important cause of
visual morbidity. Corneal neovessels, compromise both the corneal transpa-rency1
as well as its immune privilege. Patent corneal vessels impair the process by
which migrating limbal stem cells differentiate into transparent corneal
epithelial cells2. Corneal neovascularization is induced by a
variety of inflammatory, infectious, degenerative and traumatic (both
mechanical and chemical) disorders3.
To
maintain corneal avascularity under basal conditions there are low levels of
angiogenic factors and high levels of anti-angiogenic factors in the cornea4.
Imbalance of this homeostasis may occur in pathogenesis of corneal neovessels2.
It is shown that there is up-regulation of vascular endothelial growth factor
(VEGF) in inflamed and vascularized cornea5-7. Thus VEGF promotes
angiogenesis in cornea. Anti VEGF antibodies are commonly used to regress
retinal and choroidal neovessels in proliferative diabetic retinopathy, wet age
related macular degeneration (ARMD) and few other conditions. Bevacizumab, a
humanized monoclonal antibody against all types of VEGF8,9, can be
an effective option to regress corneal neovessels. Initially
it was used by researchers in animal models and found effective in reducing
corneal neovessels. Then it was used in human eyes and its affectivity in
regressing corneal neovessels was proved4
We planned a study in which
effect of sub-conjunctival Bevacizumab (Avastin®) injection on corneal
neovessels was assessed. The rationale of the study is that once it
is proved by multiple studies that subconjunctival bevacizumab is effective,
the regime can be used to regain transparency of cornea in many pathological
conditions, where corneal neovessels develop. Moreover, the regime can also be
used to reduce chance of corneal graft rejection in vascularized corneas.
MATERIAL AND METHODS
This
quasi-experimental study was conducted at Khyber Teaching Hospital Peshawar,
Pakistan from September 2011 to May 2013. Approval was taken from institutional
ethical committee of Khyber Medical College Peshawar, Pakistan. 32 Eyes were
included in the study. All eyes had moderate to severe corneal neovessels. Eyes
with active anterior segment disease like corneal ulcer, active anterior
uveitis, etc. were excluded from the study.
Each eye
was thoroughly examined on slit lamp, digital photograph taken and extent of
corneal neovascularization (CoNV) noted. Moreover corneal clarity in the area
involved by neovessels was graded as follows.
Grade I: Iris crypts visible
Grade II: Iris visible but crypts not visible
Grade III: Iris not visible, but slit lamp beam passes into
anterior chamber.
Grade IV: Totally opaque cornea
For
each patient pre-injection digital corneal photograph was taken. The eye was anaesthetized
with 1% topical proparacaine drops. Under operating microscope, sub
conjunctival injection of 0.1ml (2.5mg) of bevacizumab was given near the
limbus in the area where maximum density of neovessels found in the nearby
cornea. Photograph of cornea repeated one week after injection. A second dose
of bevacizumab was given one month after the first injection with same
protocol. Slit lamp examination for corneal clarity was done and a final corneal
photograph was taken one month after the second injection. Pre injection
corneal photographs were compared with final photographs in terms of extent of
corneal neovascularization in clock hours and percentage of corneal surface
involved by neovessels.
The data was analyzed using
SPSS version 15. Means with standard deviation were calculated for numerical
variables like age and percentage of corneal surface involved by neovessels.
Proportions were calculated for string variables like gender, causes of corneal
neovessels and clarity of cornea. Paired samples ‘t’ test was used to calculate
P- Value and a p- value of 0.005 was considered significant.
RESULTS
Thirty two Eyes were included
in the study. Twenty one 65.6% patients were males and 34.4% were females. Mean
age of all patients was 41.59 ± 17.6 years. Physical trauma with corneal
scarring was the most common cause of corneal neovascularization which was
found in 9 (28.1%) patients. This was followed by failed corneal graft in 7
(21.9%), chemical burn in 4 (12.5%), healed corneal ulcer in 4 (12.5%),
trachoma in 1 (3.1%) and unknown cause in 7 (21.9%) patients (figure 1). Mean
corneal surface involved by neovessels before injection was 50.56 ± 30.4% which
reduced to 35.81 ± 26.94% one month after second sub-conjunctival injection of
bevacizumab (p=0.000) (Figure 2) and the extent of neovessels reduced from 7.47

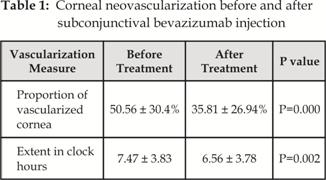

± 3.83 clock hours to 6.56 ± 3.78 clock hours (p = 0.002) (Table 1). No
significant change was found in corneal clarity.

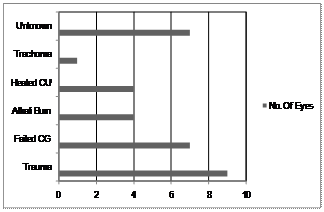

Fig. 1: Causes of corneal
neovascularization.
(CU =
Corneal Ulcer, CG = Corneal Graft)
Fig. 2: Corneal
neovascularizaion in alkali burn, showing significant reduction in extent of
neovessels after subconjunctival injection of bevacizumab.
DISCUSSION
Normally to keep the cornea
avascular, there is low level of angiogenic and high level of anti-angiogenic
factors in cornea. Imbalance of this homeostasis may occur in inflamed corneas
which lead to formation of neovessels in it that primarily sprout from limbal
vessels. VEGF-A is produced by a variety of cells including retinal pigment
epithelial cells, macro-phages, astrocytes, Muller cells, smooth cells and
T-cells. VEGF-A up-regulation has been demonstrated in inflammatory diseases
associated with neovascu-larization in human cornea.10 Role of VEGF
in pathophysiology of corneal neovascularization was proved by the researchers
in rabbits and other primates11-14.
The
anti VEGF role of bevacizumab has been proved in regressing corneal neovessels
in animals and human beings15-21. Moreover safety of this drug with
no harmful effect on corneal cells in vitro was also established22.
After that this drug was used by many researchers in reducing CoNV in human
beings6,23,24. No serious side effects of bevacizumab have been
reported while used subconjunctival25-27, intracornreal28
or topical29 on ocular surface, to regress CoNV. In our study we did
not notice any serious adverse effect of sub-conjunctival bevacizumab (2.5 mg/ 0.1
ml), except mild sub-conjunctival hemorrhage in few eyes which resolved
spontaneously.
In our
study we observed clinically significant reduction in area of corneal surface
involved by CoNV from 50.56 ± 30.4% to 35.81 ± 26.94% or extent of CoNV from
7.47 ± 3.83 clock hours to 6.56 ± 3.78 clock hours. This is consistent with
many other international studies. In a study from Canada25 the
extent of CoNV reduced from 6.00 ± 1.2 to 4.6 ± 1.00 clock hours after
bevacizumab injection (p = 0.008). In this study all eyes received at least two
Injections (2.5 mg / o.1 ml). In another study from Egypt by zaki and farid30,
the area of CoNV decreased from 14.00 ± 5.4% to 9.4 ± 3.9% of corneal surface
(p < 0.01) and extent decreased from 4.3 ± 1.5 clock hours to 2.4 ± 1.1
clock hours (p < 0.01) fifteen days after single subconjunctival injection
of 2.5 mg /0.1 ml of bevacizumab. In a study from France23 mean CoNV
area decreased from 41.1% to 33.7% at day 45 (p = 0.000) and to 33.9% at day
120
(p = 0.0013). In this study sample size was 12 eyes and each eye received 2 to
4 subconjunctival bevacizumab (2.5 mg / 0.1 ml) injections. A pilot randomized
placebo – controlled double masked trial from Moorfield Eye Hospital, London
also proved that mean area of CoNV reduced by -36% in eyes that received 3
sub-conjunctival injections of 2.5mg / 0.1ml bevacizumab at monthly intervals
compared with an increase of 90% in eyes that received saline placebo
(p = 0.007)31.
In our study we observed that
subconjunctival injection regresses newly formed small vessels and not the
well-established bigger vessels. This was also observed by Bahar I et al25
and Petsoglou C et al31 in their studies. These established vessels
are probably not affected by imbalance of VEGF, hence not respon-ding to
bevacizumab. Moreover like many other international studies mentioned above25,30,31.
In our study reduction in CoNV was only partial. This could be due to factors
other than VEGF, that can induce CoNV and remain unaffected by bevacizumab32,33.
CONCLUSION
Subconjunctival bevacizumab is effective in
regressing corneal neovessels partially and for this purpose repeated
injections are needed. Randomized control trials are needed to prove the
results.
ACKNOWLEDGEMENT
We are thankful to Ophthalmological Society of Pakistan
(centre) for financial support of this study.
Author’s Affiliation
Dr. Ibrar Hussain
Professor of Ophthalmology
Khyber Teaching Hospital
Peshawar
Dr. Akhunzada Muhammad Aftab
Trainee Medical Officer
Department of Ophthalmology
Khyber Teaching Hospital
Peshawar
REFERENCES
1.
Huang AJ, Watson BD, Hernandez E, Tseng SC. Induction of conjunctival trans differentiation on
vascularized corneas by photothrombotic occlusion of corneal
neovascularization. Ophthalmology 1988; 95: 228-35.
2.
Kinoshito S, Kiorpes TC, Friend J, Thoft
RA. Limbal epithelium in ocular surface wound
healing. Invest Ophthalmolvis sci. 1982; 23: 73-80.
3.
Change JH, Gabison EE, Kato T, Azar DT. Corneal neovascularization. Curr Opin Ophthalmol. 2001;
12: 242-9.
4.
Hisham AH, Zaki IMA, Ramzy M. Subconjunctival Bevacizumab, a
potential therapeutic strategy for
corneal neovascularization. Life Science J. 2010; 7: 112-6.
5.
Chen J, Liu W, Liu Z, Chen L, Huang T, Zhen H. Expression of vascular endothelial growth factor and
its receptors (flt-1) in morbid human corneas and investigations of its
importance. Yan Ke Xue Bao. 2002; 18: 203-7.
6.
Zheng M, Deshpande S, Lee S, Ferrara N, Rouse BT. Contribution of vascular endothelial growth factor in
neovascularization process during the pathogenesis of herpetic stromal
keratitis. J Virol. 2001; 75: 2828-35.
7.
Cursiefen C, Rummelt C, Kuchle M. Immunohistochemical localization of
vascular endothelial growth factor, transforming growth factor alpha, and
transforming growth factor beta1in human corneas with neovascularization.
Cornea 2000; 19: 526-33.
8.
Chen WL, Lin CT, Lin NT, Tu IH, Li JW, Chow LP, Liu KR, Hu FR. Subconjunctival injection of bevacizumab (Avastin) on corneal
neovascularization in different rabbit models of corneal angiogenesis. Invest Ophthalmol Vis Sci. 2009; 50:
1659-65.
9.
Yu L, Wu X, Cheng Z,
Lee CV,
LeCouter J,
Campa C,
Fuh G, Lowman H,
Ferrara N.
Interaction between bevacizumab and murine VEGF-A: a reassessment. Invest Ophthalmol Vis Sci. 2008; 49:
522–7.
10. Philipp W, Speicher L, Hummpel C. Expression of vascular endothelial growth factor and its
receptor in inflamed and vascularized human corneas. Invest Ophthalmol vis sci.
2000; 41: 2514-22.
11. Phillips GD, Stone AM, Jones BD, Schultz JC, Whitehead RA, Knighton DR. Vascular endothelial growth factor
(rh VEGF165) stimulates direct angiogenesis in the rabbit cornea. In Vivo.
1994; 8: 961-6.
12. Miller JW1, Adamis AP, Shima DT, D'Amore PA, Moulton RS, O'Reilly MS, Folkman J, Dvorak HF, Brown LF, Berse B, et al. Vascular
endothelial growth factor/vascular permeability factor is temporally and
spatially correlated with ocular angiogenesis in a primate model. Am J Pathol.
1994; 145: 574-84.
13.
Papathanassiou M1, Theodossiadis PG, Liarakos VS, Rouvas A, Giamarellos-Bourboulis EJ, Vergados IA. Inhibition of corneal neovascularization by
Subconjunctival Bevacizumab in animal model. Am J Ophthalmol. 2008; 145: 424-31.
14.
Dratviman-Storobinsky
O, Bat-Chen R. Lubin A, et al. Effect of subconjuctival and
intraocular bevacizumab injection onangiogenic gene expression levels in a
mouse model of corneal neovascularization. Molecular Vision. 2009; 15: 2326-38.
15. Papathanassiou M1, Theodossiadis PG, Liarakos VS, Rouvas A, Giamarellos-Bourboulis EJ, Vergados IA. Inhibition of corneal
neovascularization by subconjunctival bevacizumab in
an animal model. Am J Ophthalmol. 2008; 145: 424-31.
16. Yoeruek E1, Ziemssen F, Henke-Fahle S, Tatar O, Tura A, Grisanti S, Bartz-Schmidt KU, Szurman P. Tübingen Bevacizumab Study Group. Safety, penetration and efficacy of topically applied
bevacizumab: evaluation of eye drop in corneal neovascularization after
chemical burn. Acta Ophthalmol. 2008; 86: 322-8.
17. Ahmed A, Berati H, Nalan A, Aylin S. Effect of bevcizumb on corneal neovascularization in
experimental rabbit model. Clin Experiment Ophthalmol. 2009; 37: 730-6.
18. Carrasco MA. Subconjunctival bevacizumab for corneal neovascularization
in herpetic stromal keratis. Cornea. 2008; 27: 743-5.
19. Kim SW, Ha BJ,
Kim EK, Tchah H, Kim TI. The effect of topical bevacizumab on
corneal neovascularization. Ophthalmology. 2008; 115: 33-8.
20. Awadein A. Subconjunctival bevacizumab for vascularized rejected
corneal grafts, J Cataract Refract Surg. 2007; 33: 1991-3.
21. Mansour AM. Treatment of inflamed pterygia or residual pterygial bed.
Br J Ophthalmol. 2009; 93: 864-5.
22. Yoeruek E1,
Spitzer MS,
Tatar O,
Aisenbrey S,
Bartz-Schmidt KU,
Szurman P. Safety profile of bevacizumab on cultured human corneal cells.
Cornea; 26: 977-82.
23. Gueudry J, Richez F, Tougeron – Brousseau B, Genevois O, Muraine M. Subconjunctival Bevacizumab for corneal
neovascularization. J Fr Ophthalmol. 2010; 33: 630-6.
24. Benayoun Y, Adenis JP, Casse G, Forte R, Robert PY. Effect of Subconjunctival Bevacizumab on corneal
neovascularization: results of a prospective study. Cornea. 2012; 31: 937-44.
25. Bahar
I, Kaiserman I, McAllum P, et al.
Subconjunctival Bevacizumab injection for corneal neovascularization. Cornea
2008; 27: 142-7.
26. Vassileva
PI, Hergeldzhieva TG.
Avastin use in high risk corneal transplantation. Graefes Arch Clin Exp Ophthalmol.
2009; 247: 1701-6.
27. Acar
BT, Halili H, Acar S. Effect
of different doses of Subconjunctival Bevacizumab injection on corneal
neovascularization. Int Ophthalmol. 2013.
29. Dastjerdi MH1, Al-Arfaj KM, Nallasamy N, Hamrah P, Jurkunas UV, Pineda R 2nd, Pavan-Langston D, Dana R. Topical Bevacizumab in the treatment of corneal
neovascularization. Results of a prospective, open label, non comparative
study. Arch
Ophthalmol. 2009;
127: 381-9.
30. Zaki
AA, Farid SF. Subconjunctival
Bevacizumab for corneal neovascularization. Acta Ophthalmol. 2010; 88: 868-71.
31. Petsoglou
C, Balaggan KS, Dart JK, et al.
Subconjunctival Bevacizumab induces regression of corneal neovascularization: a
pilot randomised placebo-controlled double masked trial. Br J Ophthalmol. 2013:
97: 28-32.
32. Ferrara N, Leung DW, Phillips HS. Molecular characterization and distribution of vascular
endothelial growth factor. In: Muller EE, Macleod RB, eds Neuroendocrine Perspectives.
Now York: Springer- Verlag. 1991; 127.
33. Breier G, Albrecht U, Sterrer S, et al. Expression of vascular endothelial growth factor during
embryonic angiogenesis and endothelial cell differentiation. Development. 1992;
114: 521-52.
